4K Ultra-HD Camera
For high-resolution surface and texture capture.
Technical Dossier · V2.0
The Next-Generation Station for AI-Powered Skin Analysis
MAPHS Derma-AI Vision Station — the intelligent bridge connecting Computer Vision, multi-spectral imaging, and Artificial Intelligence to deliver an immediate, high-accuracy, touchless dermatological consultation.
0
Full analysis time
0
Calculated bio-indicators
0
Ultra-high-definition capture
Fully touchless
Executive Summary
A Decisive Intelligence Layer in the Customer Journey
The MAPHS Derma-AI Vision Station represents a decisive intelligence layer in the customer journey within the MAPHS environment. It delivers an immediate skin assessment powered by multi-spectral imaging technologies and an AI engine capable of processing spectral data to calculate 12 critical bio-indicators within 15 seconds.
Supported by a touchless operating architecture, a scanning head equipped with studio-grade stable illumination, and a silent Motorized Auto-Alignment mechanism, the module ensures a precise, fast, and consistent user experience. Results are instantly transformed into an intelligent report displayed on the Master Unit and delivered to the user's smartphone as an interactive PDF via QR Code, supporting immediate purchase decisions through curated product recommendations, a daily routine schedule, and an instant discount coupon.
An executive technology platform that connects rapid diagnostic analysis, intelligent reporting, and direct product recommendation within one unified premium experience.
- Triple-spectral imaging (natural, polarized, UV)
- Silent auto-alignment based on user height
- Instant interactive report via QR code
- Data-driven product recommendations and daily routine
Product Overview
A Complete Hardware Unit, Not Just Software

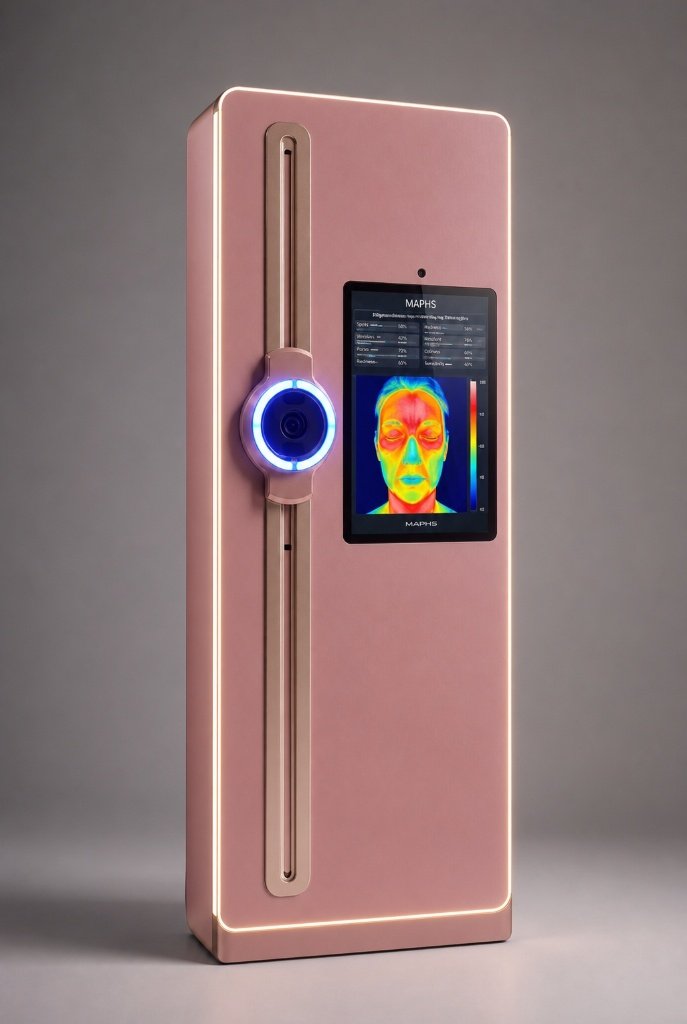

MAPHS Derma-AI Vision Station is a comprehensive Hardware Unit that integrates advanced Computer Vision and Artificial Intelligence to provide touchless dermatological consultations.
Unlike software-only solutions, this is a physical station standing at 240 cm, equipped with motorized optics and biometric sensors, designed to convert retail spaces into high-end diagnostic hubs.
240 cm height
Fully integrated hardware
Fully touchless operation
Multi-Spectral Scanning Head
Illustrative rendering of the multi-spectral scanning head, highlighting the integration of the imaging sensor with Polarized LED, UV LED, and White LED within the scanning architecture.
Mechanical & Engineering Specifications
Precision Engineering with Calculated Dimensions
Height
240 cm
Unified height compliant with MARS / MAPHS standards.
Width
45 cm
Slim architectural footprint designed for efficient space utilization.
Auto-Alignment
60 cm
Vertical travel range for the camera head through a silent internal actuator.
Optical Portal
20 cm
Recessed scanning niche equipped with Smart Halo Light.
| Item | Technical Description |
|---|---|
| Motorized Auto-Alignment | A silent internal actuator adjusts the camera head vertically across a 60 cm travel range to align precisely with the user's height upon proximity detection. |
| Optical Portal | A recessed 20 cm diameter scanning niche featuring Smart Halo Light to provide stable studio-grade illumination and ensure consistent analytical results. |
| Design Philosophy | A compact, slim structure that supports seamless integration within the MAPHS ecosystem while maintaining a precise, rapid, and touchless user experience. |
Optical & Sensing Technology
Three Advanced Optical Pillars

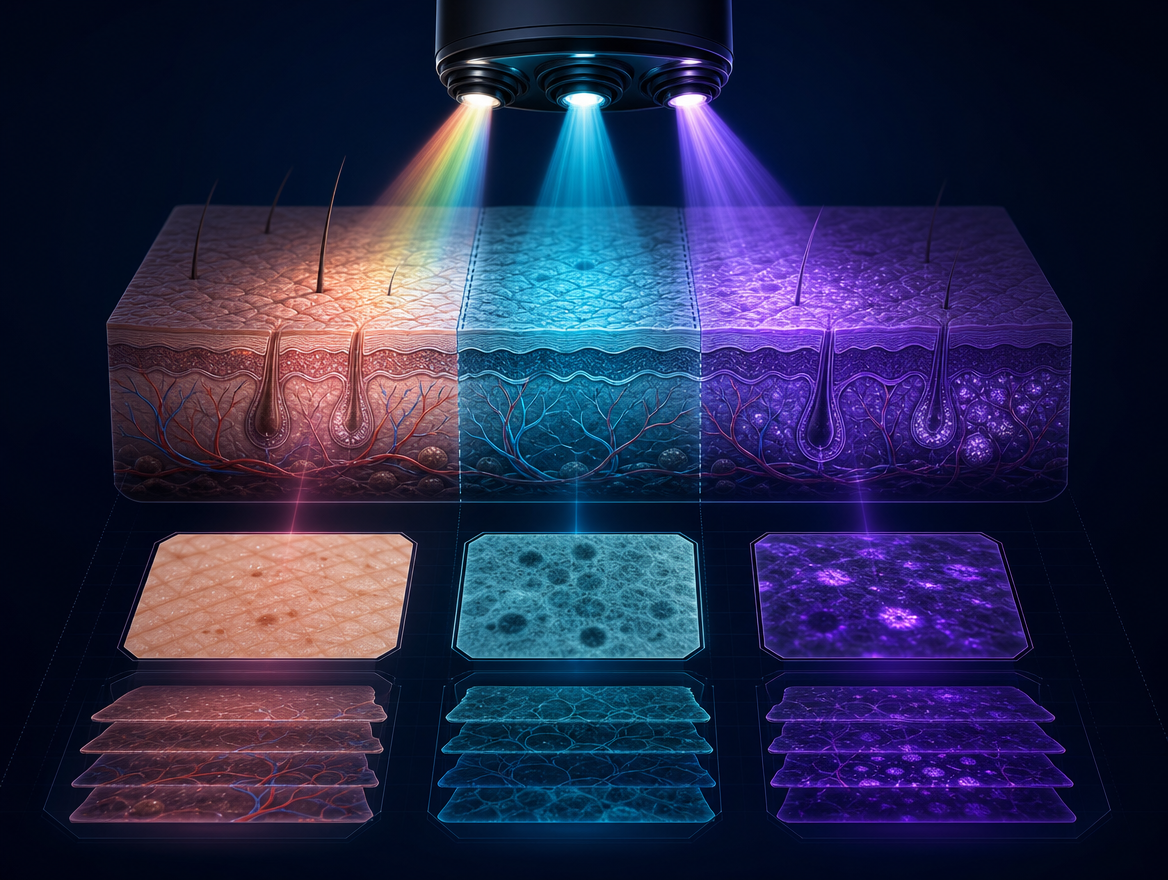

Triple-Spectral Array
Utilizes Natural, Cross-Polarized, and UV light to analyze subsurface skin conditions.
Non-Contact Biometrics
Optical reflectance sensors for measuring skin hydration without physical contact.
AI Analysis
12 Bio-Indicators in 15 Seconds
The AI engine processes spectral and image data to extract 12 critical bio-indicators within 15 seconds. These indicators form the analytical foundation upon which the final report and smart recommendation are built.
Hydration Levels
Measures water content to identify surface-level or deeper tissue dehydration.
Sebum / Oil Balance
Quantifies oil secretion balance to support skin classification as dry, oily, or combination.
Pore Size & Density
Maps pore size, density, and distribution patterns, including common areas such as the T-Zone.
Wrinkles & Fine Lines
Analyzes the depth and length of wrinkles and fine lines across different facial areas.
Surface Pigmentation
Detects surface pigmentation such as freckles, age spots, and post-acne discoloration.
Deep Spots (UV Pigments)
Reveals sub-surface melanin deposits before they become visibly apparent.
Sensitivity & Redness
Identifies redness, irritation, vascular dilation, and hidden inflammatory signs.
Acne Bacteria (Porphyrins)
Uses UV light to detect bacterial activity inside pores.
Skin Texture
Measures surface regularity and identifies roughness or uneven overall texture.
UV Damage
Evaluates the cumulative effects of chronic sun exposure on the skin.
Dark Circles
Analyzes the periorbital area to distinguish between pigmented and vascular dark circles.
Radiance & Tone
Measures tone uniformity and natural light reflectance as an indicator of overall glow.
Smart Report Deliverables
From Analysis to Immediate Purchase Decision

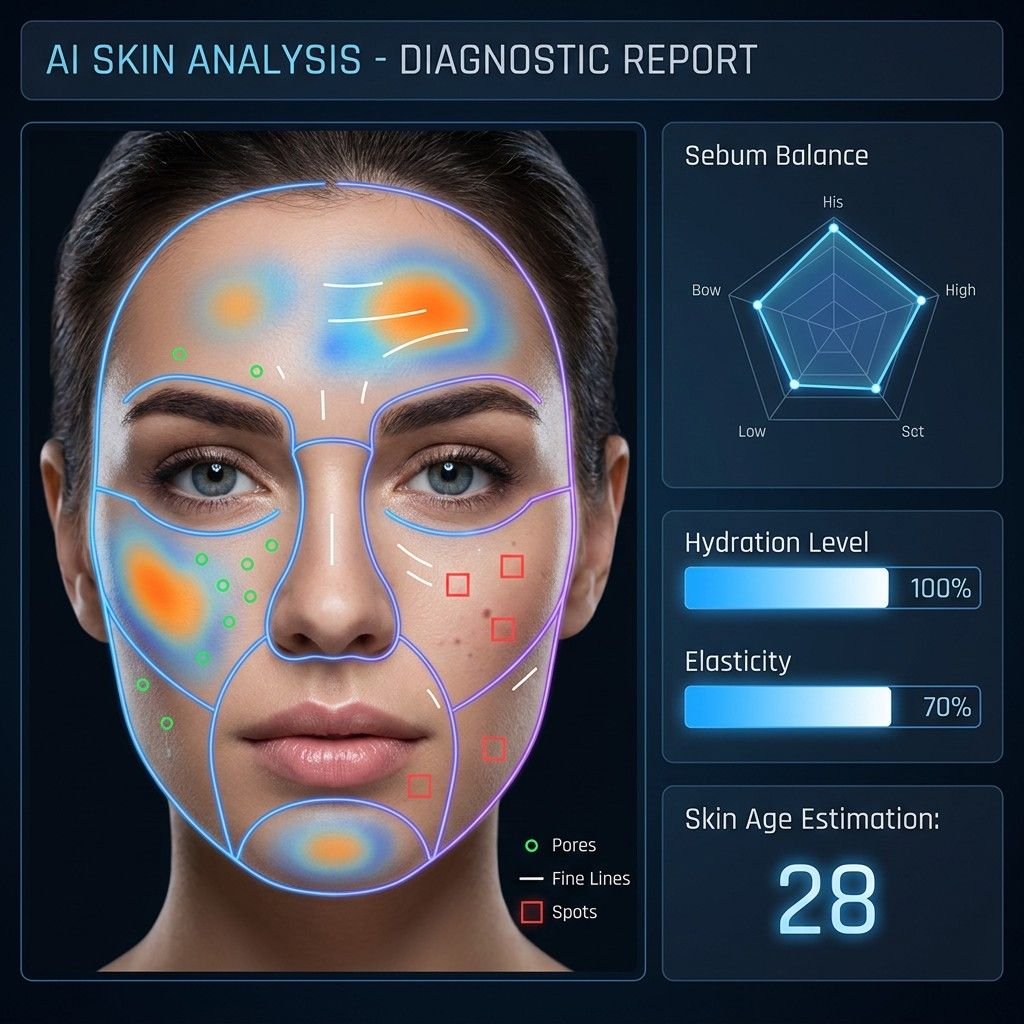

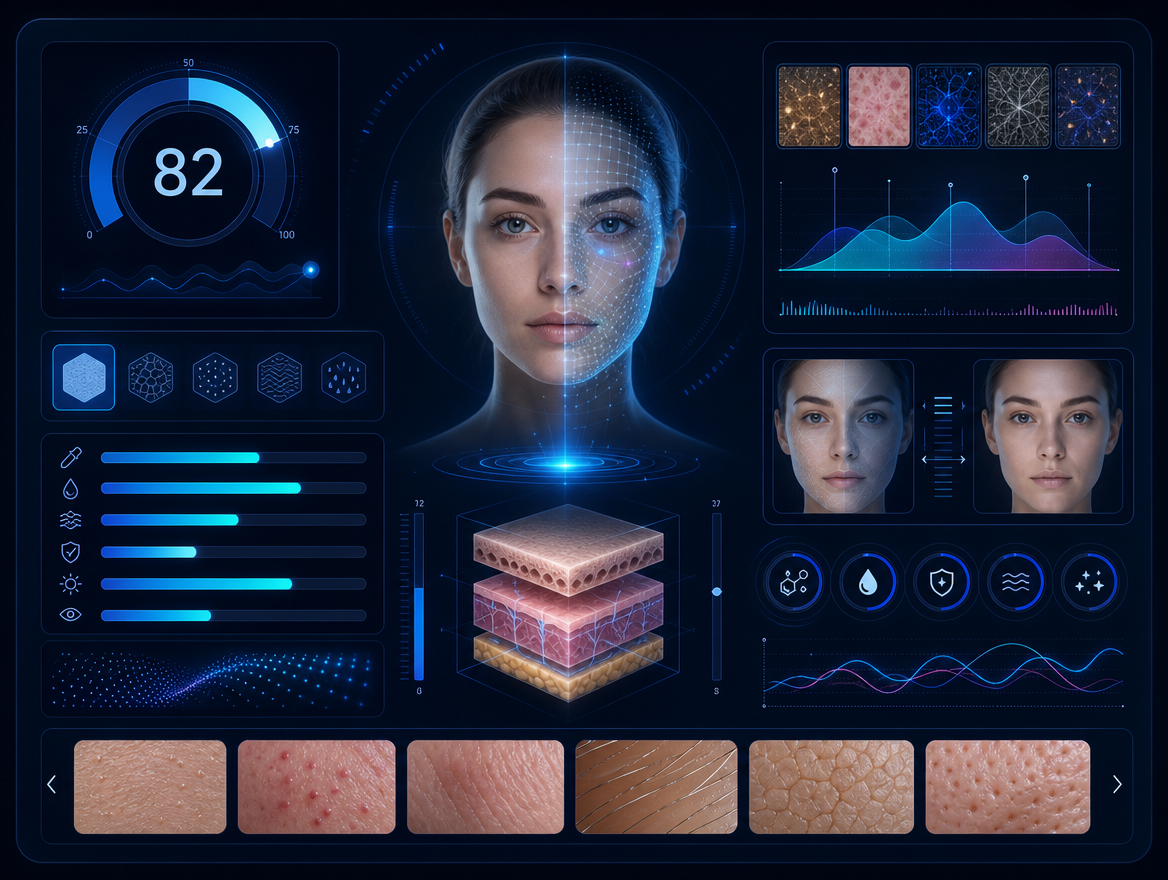

I Vital Dashboard
Results are displayed instantly on the Master Unit through a concise, understandable interface containing the essential metrics required for a fast and clear first-level decision.
- Overall Skin Score (0-100): A consolidated score representing overall skin condition.
- Skin Type Identification: Clear identification of the user's skin type.
- Biological Skin Age vs. Chronological Age: A comparison of skin age against actual age.

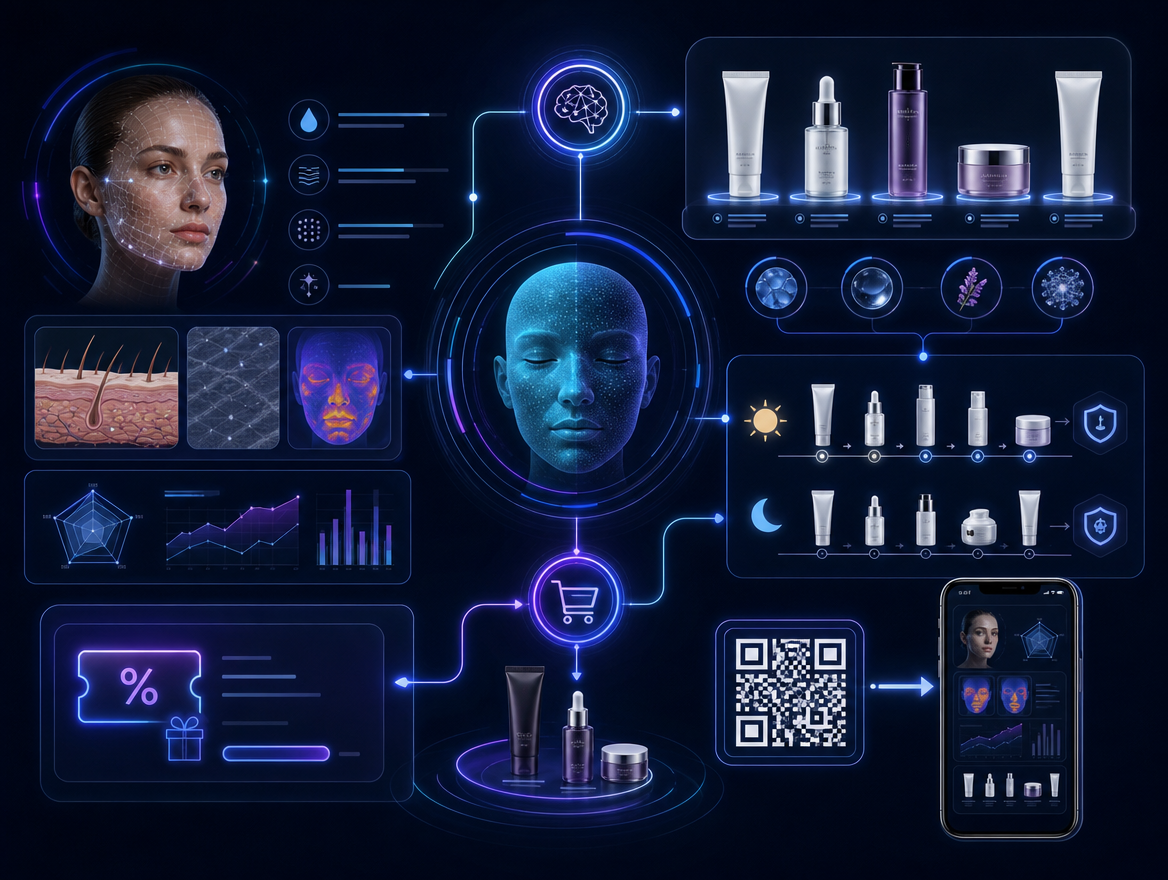

II Smart Prescription & Conversion
The report does not stop at description. It becomes a guidance and commercial activation tool by translating findings into immediately actionable recommendations.
- Curated Product Recommendations: Direct links to products available in adjacent dispensing modules.
- Daily Routine Schedule: An automated AM / PM routine based on the analytical findings.
- Instant Discount Coupon: A coupon for immediate use to support point-of-sale conversion.
- QR / Interactive PDF: Delivery of the report to the user's phone via QR Code as an interactive PDF.
Assumptions / Scope
A Clear Operating Environment and Defined Usage Boundaries
Operating Assumptions
The described performance and workflow assume operation within a controlled retail, wellness, or beauty-tech environment where lighting conditions, user positioning, and device calibration are maintained according to the intended operating protocol.
- Controlled usage environment: Stable installation, managed ambient conditions, and standard user guidance during capture.
- Calibration and maintenance: Optical, illumination, and sensing components are assumed to be periodically calibrated and maintained.
- Normal user interaction: Output quality assumes compliant face positioning, appropriate capture distance, and unobstructed skin visibility.
- Configured software workflow: Report logic, recommendations, and timing targets assume full system integration with the approved MAPHS software stack.
Intended Scope & Boundaries
This module is positioned as an AI-assisted skin analysis and recommendation platform designed for screening, insight generation, and commercial guidance. It is not presented within this dossier as a substitute for physician-led diagnosis, biopsy, laboratory testing, or formal medical treatment planning.
- Advisory-grade output: Results are intended to support user understanding, product matching, and care-routine guidance.
- Not a medical diagnostic claim: The system should not be interpreted as issuing definitive dermatological diagnoses unless separately validated and certified for that purpose.
- Use-case boundary: Best suited for beauty retail, skincare consultation, wellness environments, and premium customer experience workflows.
- Recommendation dependency: Product and routine outputs depend on the configured product database, business rules, and commercial integration layer.
References & Scientific Standards
Trusted, Validated Scientific Foundations
Imaging Protocols
The module follows controlled multi-spectral lighting protocols (Cross-Polarization and UV) of the same class used in leading systems such as VISIA™ (Canfield Scientific).
Analytical Models
The algorithms are built on extensive datasets and aligned with research in Deep Learning for Dermatology published in Nature Medicine and PubMed, with correlation accuracy exceeding 95% compared with clinical assessments.

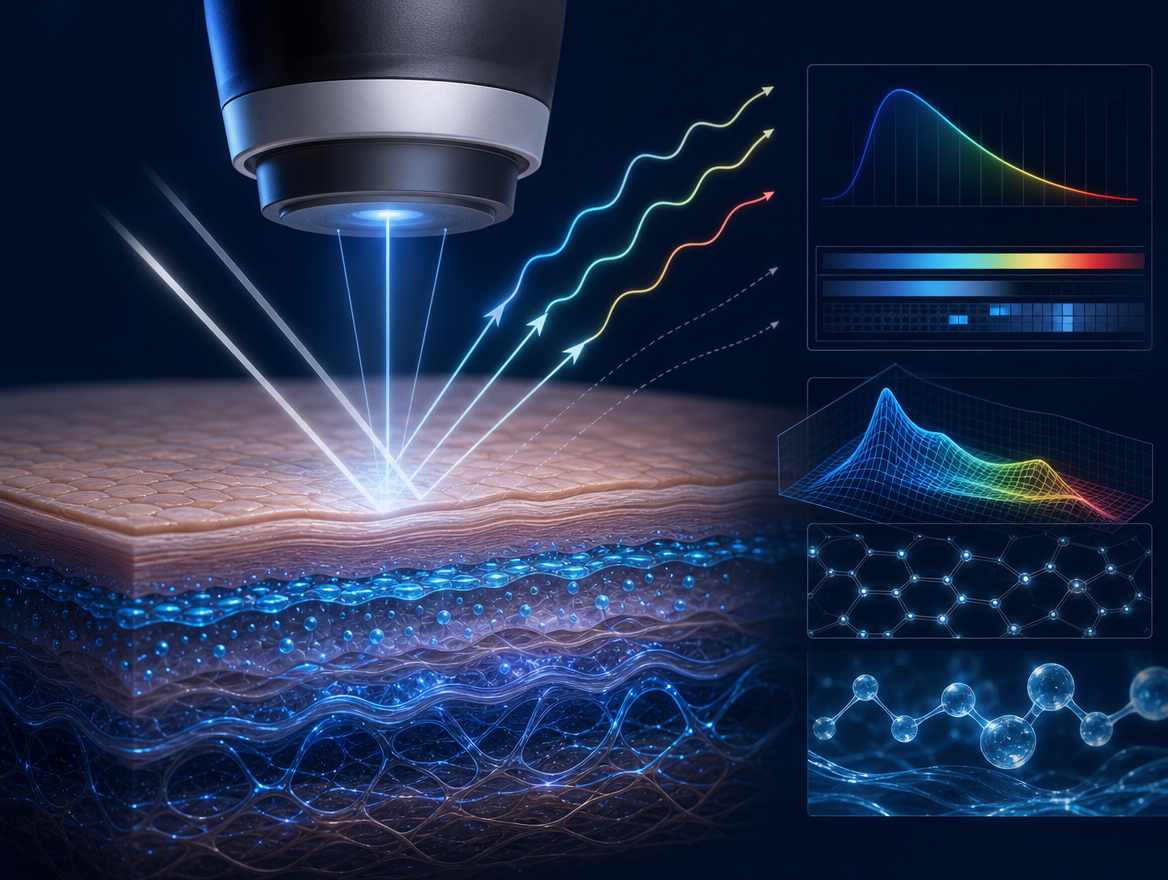

Hydration Measurement
Non-contact hydration measurement relies on Diffuse Reflectance Spectroscopy (DRS), a scientifically validated approach for assessing skin moisture and barrier function without direct contact.
Compliance & Safety
The module observes CE Mark requirements, in addition to privacy and data protection compliance under GDPR and KSA PDPL, ensuring the confidentiality of user images and data.
Commercial & Operational Value
Direct Impact on Conversion and Credibility
Strengthened Scientific Credibility
Transforms recommendation from a general impression into an analytical reading supported by measurable indicators.
Fast, Touchless Experience
A short response time and clean, seamless operation suited to modern, high-throughput environments.
Direct Link to Product Conversion
Curated recommendations, routine guidance, and an instant coupon make the report part of the sales conversion path.
Extended Customer Continuity
Report delivery via QR / interactive PDF extends the interaction to the user's phone and gives the experience continued value for review, follow-up, and action.
Executive Conclusion
An Intelligent Decision Platform, Not Just an Imaging Tool
The MAPHS Derma-AI Vision Station delivers a balanced combination of analytical precision, operational elegance, and commercial value. It functions not merely as an imaging or assessment tool, but as an intelligent decision platform that connects understanding skin condition with guiding the user toward the most suitable product within a premium, rapid, and reliable experience.
In this form, the module becomes a central element in shaping the modern MAPHS experience: one that translates advanced technology into immediate confidence, actionable outputs, and a direct impact on interaction quality and conversion.
